EVE RIVER-XL LOADED

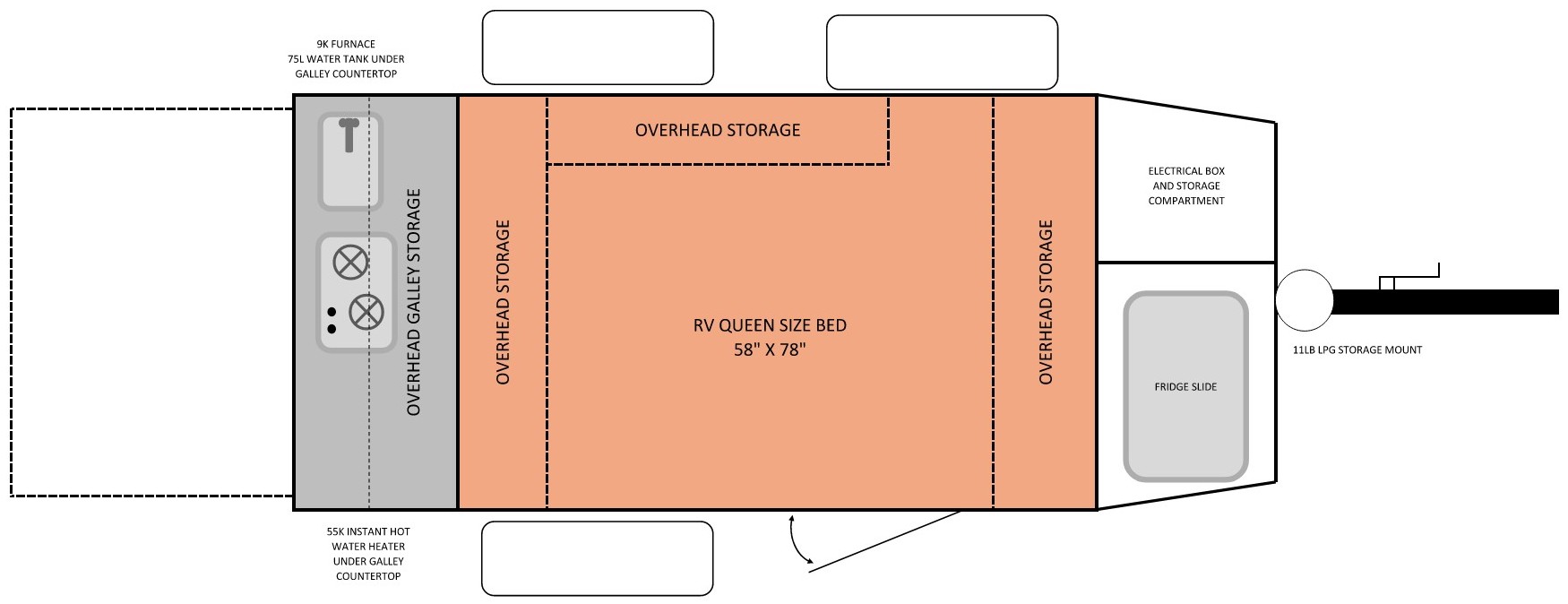

INTERIOR LAYOUT
TECHNICAL SPECIFICATIONS
OVERALL HEIGHT - 1880mm. / 74"
INTERIOR HEIGHT - 1346mm. / 53"
OVERALL WIDTH - 2260mm. / 89"
OVERALL LENGTH - 4318mm. / 14'2"
GVWR - 907kg. / 2000lb.
DRY WEIGHT - 612kg. / 1350lb.
FRESH WATER WEIGHT - 75kg. / 165lb.
CARGO CARRYING CAPACITY - 219kg. / 485lb.
TONGUE WEIGHT - 154kg. / 340lb.
FRESH WATER CAPACITY - 75L / 20gal.
GREY/BLACK WATER CAPACITY - 0L / 0gal.
PROPANE TANK HOLDER - 11LB PROPANE TANK
PACKAGE OPTIONS
EXTERIOR
-WEATHERPROOF LOW MAINTENANCE SHELL
-BLACK ALUMINUM CHECKERPLATE ROCK GUARD
-24" X 36" X 60" ALUMINUM STORAGE CARGO BOX
-CARGO BOX MOUNTED FRIDGE SLIDE
-CARGO BOX MOUNTED WET STORAGE RACK
-400LB ROOF RACK
-250LB REAR HITCH
-REAR GALLEY LIFTUP GATE WITH SHOCKS
-SINGLE PASSENGER SIDE ENTRY DOOR
-STANDARD PASSENGER SIDE WINDOW
-DRIVER SIDE EMERGENCY EXIT WINDOW
-MAXXAIR ROOF VENT FAN WITH REMOTE
-STEEL LIGHT DUTY FENDERS
-LED TRAILER LIGHTING
-LED EXTERIOR
-LED AWNING LIGHT
-WORK LIGHT PLUG
-EXTERIOR SHOWER AND SHOWER AWNING
-270 DEGREE AWNING
-2000LB WHEELED TONGUE JACK
-205/75R15 ROAD TIRES C/W FULLSIZE SPARE
EQUIPMENT
-2200LB HD TIMBREN SUSPENSION
-REAR CORNER LEVELLING JACKS
-TRAILER BRAKES AND CONTROLLER
-7 PIN TOW VEHICLE CONNECTION
-CLASS 2 - 2 INCH BALL
-12VDC DISTRIBUTION SYSTEM
-200W SOLAR PANEL
-30AMP MPPT SOLAR CHARGER
-REMOTE SOLAR PANEL EXTERIOR PLUG
-2000W INVERTER/CHARGER
-15AMP 120VAC UTILITY POWER CONNECTION
-120VAC GFCI PROTECTED SYSTEM RECEPTACLES
-20AMP DC TO DC CHARGER
-STEREO C/W INTERIOR OR EXTERIOR SPEAKERS
-75L WATER TANK WITH LEVEL GUAGE
-WATER PUMP WITH CITY WATER CONNECTION
-SINK AND FAUCET WITH EXTERIOR DRAIN
-LPG TWO BURNER COOKTOP
-LPG 55K BTU INSTANT HOT WATER HEATER
-LPG 9K BTU FURNACE
-LPG REGULATED EXTERIOR QUICK CONNECT
INTERIOR
-INSULATED EASY CLEAN WALLS
-INSULATED ROOF
-MOISTURE WICKING MARINE CARPET CEILING
-LED CABIN LIGHTING AND DUAL READING LIGHTS
-BEDSIDE USB
-BEDSIDE 120VAC RECEPTACLE
-FRONT, REAR AND SIDE INTERIOR STORAGE CABINETS
-ELECTRICAL COMMAND CENTER
-TABLET MOUNT
-6" TRI-FOLD RV QUEEN MATTRESS
SAFETY
-CURT BRAKE CONTROLLER AND BREAKAWAY
-CARBON MONOXIDE AND SMOKE --DETECTOR PROPANE DETECTOR
-(2) FIRE EXTINGUISHERS
-SAFETY CHAINS
WARRANTY
-LIFETIME FRAME WARRANTY
-LIMITED 3 YEAR CABIN WARRANTY
EVR-XL LOADED MODEL W/ OFFROAD PACKAGE
OFFROAD PACKAGE INCLUDES
-15 X 7 STEEL WHEELS
-235/75R15 OFFROAD TIRES C/W -FULLSIZE SPARE (REPLACES 205/75R15 WHEELS AND ROAD TIRES)
-UPGRADED HEAVY DUTY FENDERS (REPLACE LIGHT DUTY FENDERS)
-STEEL ROCK SLIDERS
OPTIONAL UPGRADES
- 100, 200 AND 300aH LiFePO4 12.8VDC BATTERIES
- ROOFTOP AIR CONDITIONING
- PORTABLE AIR CONDITIONG ROUGH-IN PORTS
- ADDITIONAL DRIVER SIDE ENTRY DOOR (MUST INCLUDE SPARE TIRE RELOCATION)
- MC-1000 OFFROAD COUPLER
